• Air conditioning, single-zone manual
• Assist handles, driver and right-front passenger
• Defogger, side windows
• Headliner, cloth, over driver and passenger
• Lighting, interior with 4 dome lights 1 overhead and 3 LED's on cross members in cargo area, includes defeat switch and door handle-activated switches
• Oil life monitor
• Power outlet, 120-volt
• Steering wheel, steel sleeve column with theft-deterrent locking feature, Black
• Theft-deterrent system, vehicle, PASS-Key III
• Tow/haul mode selector, instrument panel-mounted
• Trim panels, hinged rear side doors and hinged rear doors (Not available with (Y3H) Paratransit Package.)
• Visors, driver and front passenger, cloth, padded
• Warning tones, headlamp on and key-in-ignition
• Windows, power (Included with (ZQ2) Convenience Package.)

• Battery, 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Body, standard
• Brakes, 4-wheel antilock, 4-wheel disc
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Frame, full-length box ladder-type
• Fuel tank capacity, mid-frame and approximately 31 gallons (117.3L)
• Rear wheel drive
• Steering, power
• Suspension, front independent with coil springs and stabilizer bar
• Suspension, rear hypoid drive axle with multi-leaf springs

• Daytime Running Lamps
• Door beams, steel-side
• StabiliTrak, traction assistance and vehicle stability enhancement system
• Tire Pressure Monitoring System (does not apply to spare tire)

2500 VAN PREFERRED EQUIPMENT GROUP

• includes Standard Equipment

REAR VISION CAMERA

• display integrated into rearview mirror

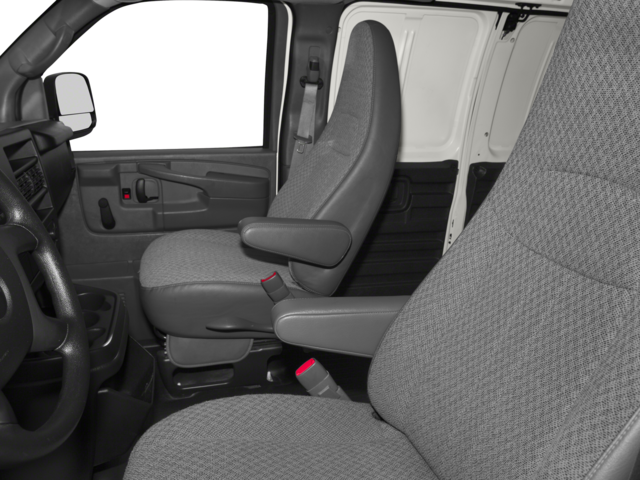

SEATS, FRONT BUCKET WITH CUSTOM CLOTH TRIM

• head restraints and inboard armrests Includes (BA3) console with swing-out storage bin.)

LIGHTING, AUXILIARY

• with reading and underhood lights Includes (U80) 8-point digital compass.)

SMOKER'S PACKAGE

• includes ashtray and lighter

• Convenience Package: Tilt-Wheel; Cruise Control
• Preferred Equipment Group 1WT: 16
• 600 lbs (3
• 901 Kg) GVWR; Rear LT245/75R16E AS BW Tires; Front LT245/75R16E AS BW Tires
• Heavy-Duty Rear Locking Differential
• Rear Vision Camera
• Leather-Wrapped Steering Wheel
• Reclining Front Bucket Seats with Inboard Armrests
• Fixed Rear and Side Cargo Door Glass
• Auxiliary Lighting
• Bluetooth® For Phone
• Smoker's Package

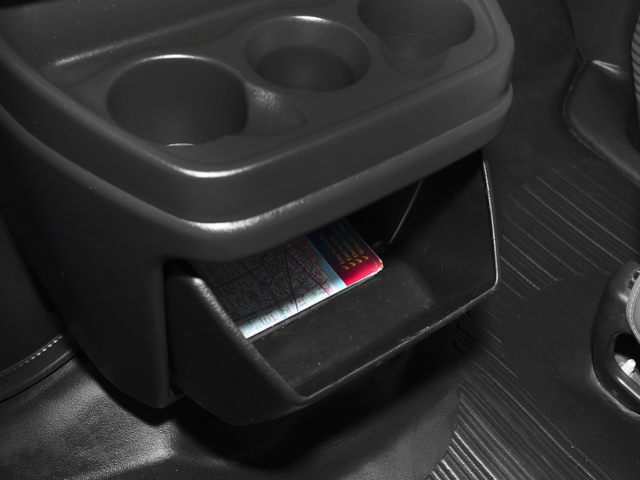

• Engine Cover Console with Swing-Out Storage Bin
• Rear mounted camera
• Selective service internet access
• Cruise control with steering wheel mounted controls

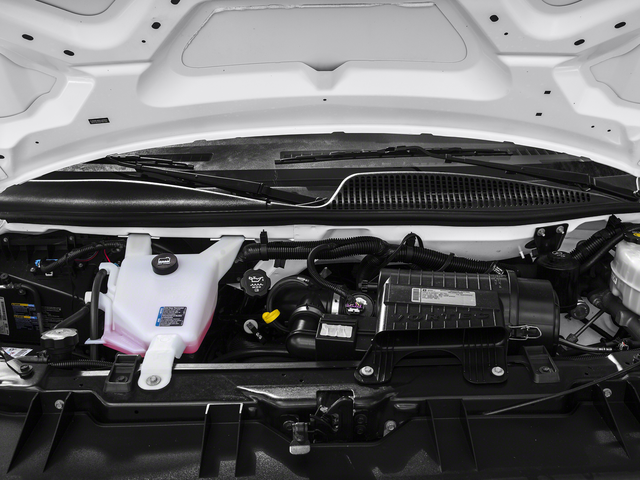

• Vortec 6L V-8 variable valve control
• regular gasoline
• engine with 342HP
• Vortec 6L V-8
• Mechanical
• Immobilizer
• Bluetooth® handsfree wireless device connectivity
• StabiliTrak electronic stability control system

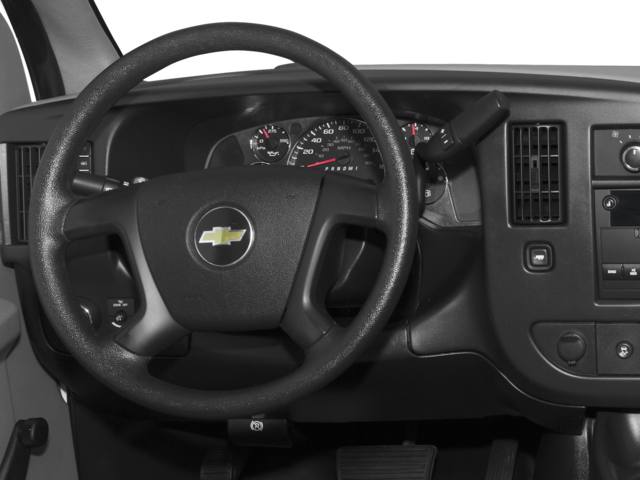

• Leather steering wheel
• Manual rear child safety door locks
• Manual tilting steering wheel
• Wheel hub covers
• 16 x 6.5-inch front and rear gray steel wheels
• LT245/75SR16 AS BSW front and rear tires
• Cloth front seat upholstery
• 6 airbags
• Driver front impact airbag
• Seat mounted side impact driver airbag
• Curtain first-row overhead airbags
• Cancellable front passenger air bag
• Seat mounted side impact front passenger airbag
• Airbag occupancy sensor
• 6-speed automatic
• Selectable mode transmission
• Manual climate control

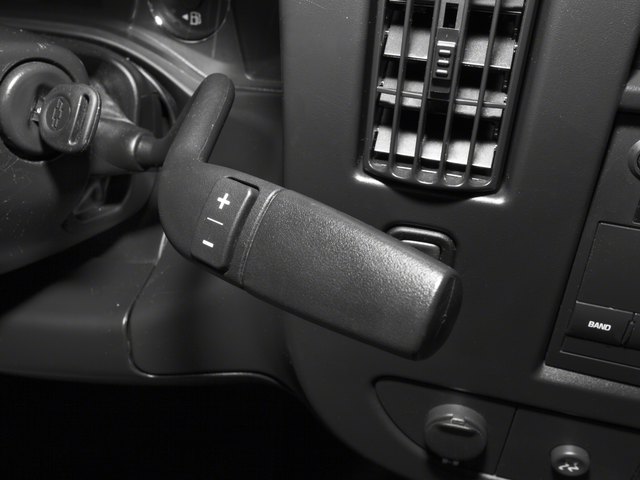

• Sequential shift control
• Automatic
• Sealed beam headlights
• Halogen headlights
• Auto on/off headlight control
• Daytime running lights
• Delay-off headlights
• Bucket front seats
• Driver seat with 4-way directional controls
• Front passenger seat armrest
• Front passenger seat with 4-way directional controls
• 4-wheel disc brakes
• 4-wheel antilock (ABS) brakes
• Rear-wheel drive
• Seating capacity: 2
• Front beverage holders
• Front height adjustable seatbelts
• Basic warranty: 36 month/36
• 000 miles

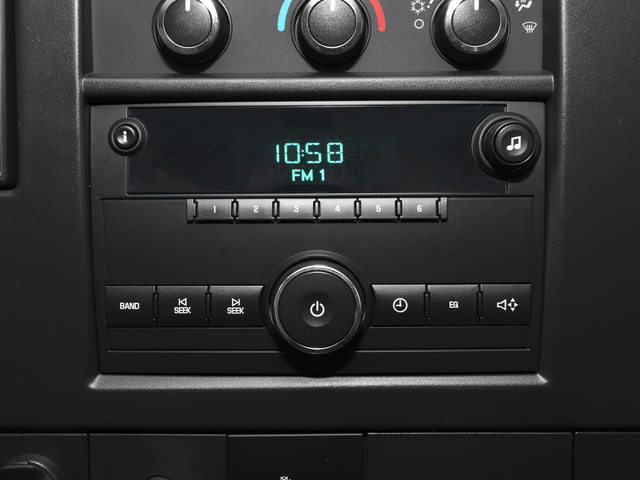

• AM/FM
• Full-size spare tire with steel wheel
• Crank-down spare tire

• Vehicle
• Rear Door Type: Dual Swing-out
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 105
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 13.6
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4300
• Gross Axle Wt Rating - Rear (lbs): 5360
• Curb Weight - Front (lbs): 3109
• Curb Weight - Rear (lbs): 2456
• Gross Vehicle Weight Rating Cap (lbs): 8600
• Gross Combined Wt Rating (lbs): 14600
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 8200
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 820
• Maximum Trailering Capacity (lbs): 10000
• Suspension
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: Hypoid Multi-Leaf
• Spring Capacity - Front (lbs): 4300
• Spring Capacity - Rear (lbs): 5360
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 4300
• Axle Capacity - Rear (lbs): 5360
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): N/A
• Shock Absorber Diameter - Rear (mm): N/A
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13.0 x 1.1
• Tires
• Front Tire Order Code: XLP
• Rear Tire Order Code: YLP
• Spare Tire Order Code: ZLP
• Front Tire Size: LT245/75R16E
• Rear Tire Size: LT245/75R16E
• Spare Tire Size: LT245/75R16E
• Front Tire Capacity (lbs): 2190
• Rear Tire Capacity (lbs): 2680
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Size (in): 16 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.2
• Steering Ratio (:1), At Lock: 17.2
• Turning Diameter - Curb to Curb (ft): 54.5
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 31.0
• Fuel Tank Location: Mid-frame
• Doors
• Side Door Type: Swing-out
• Exterior Dimensions
• Wheelbase (in): 155.00
• Length, Overall w/rear bumper (in): 244.10
• Width, Max w/o mirrors (in): 79.20
• Height, Overall (in): 84.30
• Overhang, Front (in): 39.70
• Overhang, Rear w/bumper (in): - TBD -
• Ground to Top of Load Floor (in): 27.80
• Ground Clearance, Front (in): 11.00
• Ground Clearance, Rear (in): 7.10
• Rear Door Opening Height (in): 49.40
• Rear Door Opening Width (in): 57.00
• Side Door Opening Height (in): 47.90
• Side Door Opening Width (in): 44.10
• Step Up Height - Front (in): 20.30
• Step Up Height - Side (in): 20.80
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): 173.60
• Cargo Area Length @ Floor to Seat 1 (in): 146.20
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 52.70
• Cargo Box (Area) Height (in): 53.40
• Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 2
• Front Head Room (in): - TBD -
• Front Leg Room (in): - TBD -
• Front Shoulder Room (in): - TBD -
• Front Hip Room (in): - TBD -
• Summary
• Vehicle Name: Chevrolet Express Cargo Van
• Body Style: Cargo Van
• Body Code: ZW9
