• 3 12V DC Power Outlets
• Air Filtration
• Analog Appearance
• Cab Mounted Cargo Lights
• Compass
• Fade-To-Off Interior Lighting
• Fixed Antenna
• Front Cupholder
• Full Cloth Headliner
• Glove Box
• Outside Temp Gauge
• Rear Cupholder
• Securilock Anti-Theft Ignition (pats) Immobilizer

• 200 Amp Alternator
• 23 Gal. Fuel Tank
• 70-Amp/Hr 610CCA Maintenance-Free Battery w/Run Down Protection
• Auto Locking Hubs
• Double Wishbone Front Suspension w/Coil Springs
• Electric Power-Assist Speed-Sensing Steering
• Electronic Transfer Case
• HD Gas-Pressurized Shock Absorbers
• Solid Axle Rear Suspension w/Leaf Springs
• Trailer Wiring Harness

• ABS And Driveline Traction Control
• Airbag Occupancy Sensor
• Dual Stage Driver And Passenger Front Airbags
• Dual Stage Driver And Passenger Seat-Mounted Side Airbags
• Electronic Stability Control (ESC) And Roll Stability Control (RSC)
• Rear Child Safety Locks
• Safety Canopy System Curtain 1st And 2nd Row Airbags
• Side Impact Beams
• Tire Specific Low Tire Pressure Warning

CLASS IV TRAILER HITCH RECEIVER

• smart trailer tow connector and 4-pin/7-pin wiring harness

• Equipment Group 302A Luxury: single-CD Radio with SiriusXM Satellite; BoxLink Cargo Management System; 5.0L V8 Flex Fuel Engine; Leather-Wrapped Steering Wheel; 3
• 197 Kg (7
• 050 Lb) Payload Package GVWR; Remote Start System; 8-Way Power Driver's Seat; SYNC 3; LED Box Lighting; Electronic 6-Speed Automatic Transmission; Power-Adjustable Pedals; Heated Front Seats; Rear Under-Seat Storage
• FX4 Off-Road Package: Front and Rear Off-Road Tuned Shock Absorbers; Skid Plates; 4x4 FX4 Off-Road Decal; Hill Descent Control
• XLT Sport Appearance Package
• Trailer Tow Package: Auxiliary Transmission Oil Cooler; Pro Trailer Backup Assist; Class IV Trailer Hitch Receiver; Upgraded Radiator; Upgraded Front Stabilizer Bar
• XTR Package
• Voice-Activated Navigation
• P275/55R20 BSW AT Tires
• Pro Trailer Backup Assist
• Electronic Locking with 3.55 Axle Ratio
• Class IV Trailer Hitch Receiver
• Tailgate Step with Tailgate Lift Assist
• SYNC 3
• Manual-Folding Heated Power Glass Trailer Tow Mirror
• Remote Start System
• Integrated Trailer Brake Controller
• LED Side-Mirror Spotlights
• BoxLink Cargo Management System
• LED Box Lighting
• Skid Plates
• Rear mounted camera
• Brake assist system
• Cruise control with steering wheel mounted controls
• Integrated navigation system with voice activation
• Keyfob remote start
• Heated driver and front passenger seats
• Primary monitor touchscreen
• Part-time 4WD
• 5L V-8 DOHC
• Ti-VCT variable valve control
• regular unleaded
• engine with 385HP
• 5L V-8 DOHC
• MyKey restricted driving mode/alerts
• SecuriCode external keypad door lock control
• Mechanical
• Wireless audio streaming
• Pro Trailer Backup Assist vehicle and trailer reverse assist
• Dynamic Hitch Assist vehicle to trailer hitching assist
• SecuriLock immobilizer
• SiriusXM Traffic real-time traffic
• Bluetooth® handsfree wireless device connectivity
• AppLink smart device app link
• Trailer brake controller
• Trailer sway control
• SYNC external memory control
• Electronic stability control system with anti-roll
• Hill descent control
• Hill start assist
• 3 12V power outlets
• Front fog lights
• Leather and metal-look steering wheel
• Tailgate Assist easy lift tailgate
• Tailgate Assist easy lift tailgate
• Integrated tailgate step
• Active grille shutters
• Trailer hitch light
• Manual rear child safety door locks
• Heated driver and passenger side door mirrors
• Manual tilting steering wheel
• Manual telescopic steering wheel
• Easy Fuel capless fuel filler
• Manual extendable trailer mirrors
• Power adjustable pedals
• Exterior mirror LED spot lights
• 20 x 8.5-inch front and rear painted aluminum wheels
• P275/55SR20 AT BSW front and rear tires
• Cloth front seat upholstery
• 6 airbags
• Driver front impact airbag
• Seat mounted side impact driver airbag
• Safety Canopy System curtain first and second-row overhead airbags
• Passenger front impact airbag

• Mileage
• Fuel Economy Est-Combined (MPG): 19
• EPA Fuel Economy Est - City (MPG): 17
• EPA Fuel Economy Est - Hwy (MPG): 23
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 610
• Cold Cranking Amps @ 0° F (2nd): 610
• Maximum Alternator Capacity (amps): 200
• Weight Information
• Base Curb Weight (lbs): 4710
• Base Curb Weight (lbs): 4712
• Base Curb Weight (lbs): 4713
• Base Curb Weight (lbs): 4715
• Base Curb Weight (lbs): 4717
• Base Curb Weight (lbs): 4718
• Base Curb Weight (lbs): 4720
• Base Curb Weight (lbs): 4722
• Base Curb Weight (lbs): 4737
• Base Curb Weight (lbs): 4749
• Base Curb Weight (lbs): 4709
• Gross Axle Wt Rating - Front (lbs): 3450
• Gross Axle Wt Rating - Rear (lbs): 3300
• Curb Weight - Front (lbs): 2795
• Curb Weight - Rear (lbs): 1914
• Gross Vehicle Weight Rating Cap (lbs): 6350
• Gross Combined Wt Rating (lbs): 12200
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 7100
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 710
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 7000
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 1750
• Maximum Trailering Capacity (lbs): 7100
• Suspension
• Suspension Type - Front: Double Wishbone
• Suspension Type - Rear: Leaf
• Spring Capacity - Front (lbs): 3450
• Spring Capacity - Rear (lbs): 3300
• Axle Type - Front: Independent
• Axle Type - Rear: Rigid Axle
• Axle Capacity - Front (lbs): 3750
• Axle Capacity - Rear (lbs): 4800
• Axle Ratio (:1) - Front: 3.55
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.55
• Axle Ratio (:1) - Rear: 3.73
• Brakes
• Brake Type: 4-Wheel Disc
• Brake ABS System: 4-Wheel
• Brake ABS System (Second Line): 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.8
• Rear Brake Rotor Diam x Thickness (in): 13.7
• Tires
• Front Tire Order Code: T2P
• Rear Tire Order Code: T2P
• Spare Tire Order Code: T2P
• Front Tire Size: P275/55SR20
• Front Tire Size: P265/70SR17
• Rear Tire Size: P275/55SR20
• Rear Tire Size: P265/70SR17
• Spare Tire Size: Full-Size
• Front Tire Capacity (lbs): 3650
• Rear Tire Capacity (lbs): 4056
• Wheels
• Front Wheel Size (in): 17 X 7.5
• Rear Wheel Size (in): 17 X 7.5
• Spare Wheel Size (in): Full-Size
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Rack-Pinion
• Turning Diameter - Curb to Curb (ft): 47.8
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 23
• Exterior Dimensions
• Wheelbase (in): 145
• Length, Overall (in): 231.9
• Width, Max w/o mirrors (in): 79.9
• Height, Overall (in): 77.2
• Overhang, Front (in): 37.8
• Ground to Top of Load Floor (in): 34.6
• Ground Clearance, Front (in): 9.3
• Ground Clearance, Rear (in): 9.3
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 66
• Cargo Box Width @ Top, Rear (in): 65.2
• Cargo Box Width @ Floor (in): 65.2
• Cargo Box Width @ Wheelhousings (in): 50.6
• Cargo Box (Area) Height (in): 21.4
• Tailgate Width (in): 60.3
• Cargo Volume (ft³): 52.8
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 40.8
• Front Leg Room (in): 43.9
• Front Shoulder Room (in): 66.7
• Front Hip Room (in): 62.5
• Second Head Room (in): 40.4
• Second Leg Room (in): 43.6
• Second Shoulder Room (in): 65.9
• Second Hip Room (in): 64.7
• Summary

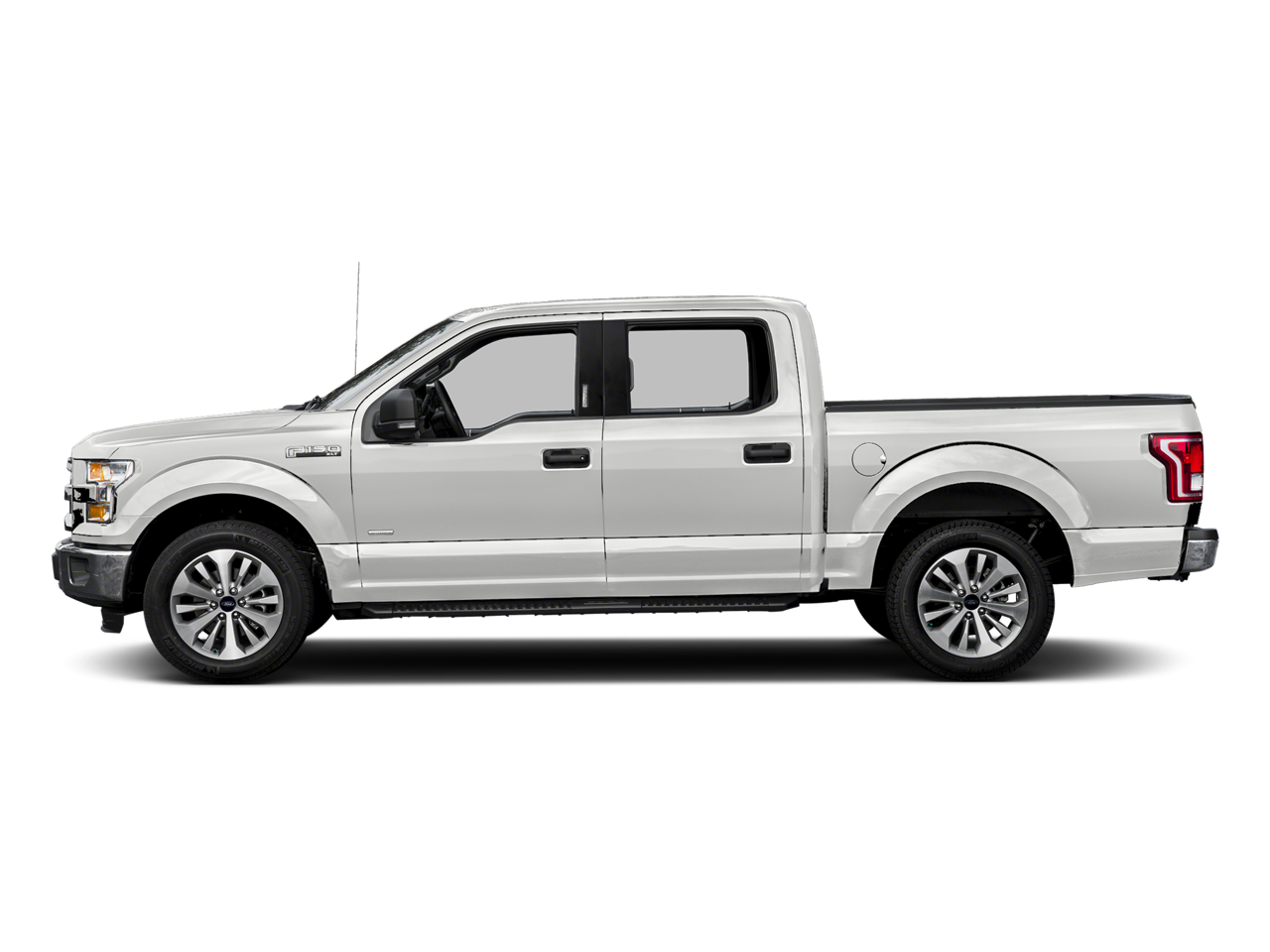

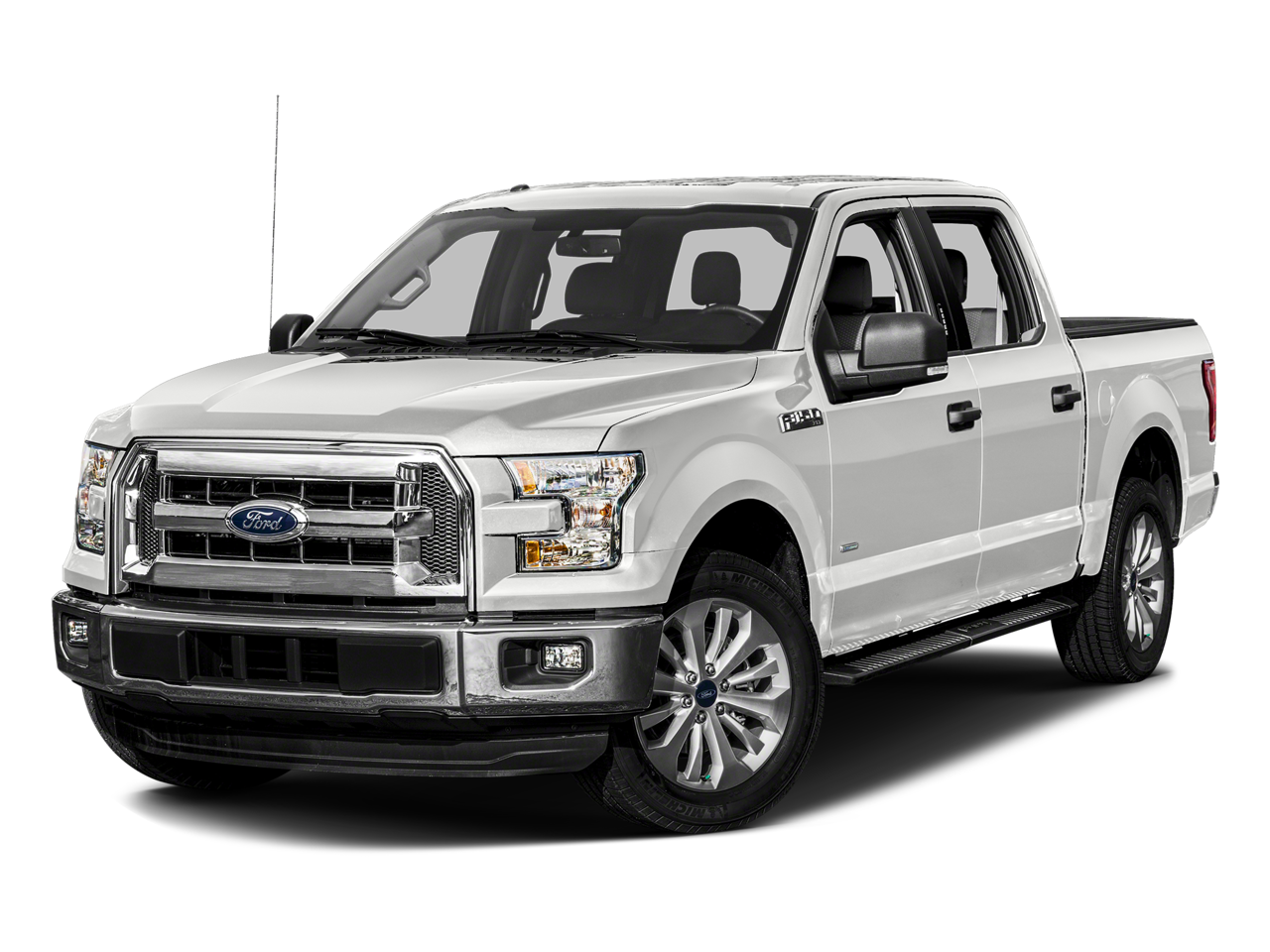

• Vehicle Name: Ford F-150
• Body Style: SuperCrew Cab Styleside
• Body Code: T
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 9.3 (Est)
