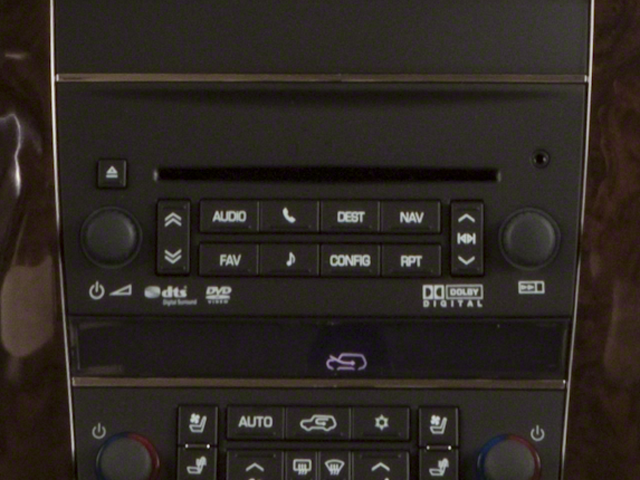

• Audio system controls, rear with 2 headphone jacks (headphones not included) and controls for volume, station selection and media
• Audio system feature, Bose 5.1 Cabin Surround Sound system with 10 speakers
• Audio system feature, USB port, located inside center console, radio interface
• Climate control, rear air conditioning
• Climate control, rear heat
• Climate control, tri-zone automatic with individual climate settings for driver, right-front passenger and rear passengers

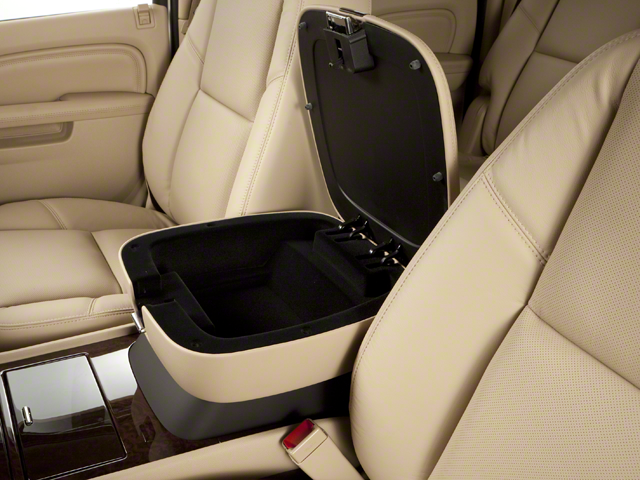

• Console, floor with damped-door storage covers, large storage bin, analog clock, dual cup holders, rear seat audio and electronic climate controls and second row heated seat controls
• Console, overhead deluxe with reading lights and (UG1) Universal Home Remote (Includes sunroof controls)
• Cruise control, electronic with set and resume speed
• Cup holders, quad front, dual second row and single third row
• Defogger, rear-window electric
• Door locks, power programmable with lockout protection and power lock for liftgate
• Floor covering, color-keyed carpeting
• Mirror, inside rearview auto-dimming, includes OnStar controls.
• Pedals, power-adjustable for accelerator and brake
• Remote Keyless Entry
• Remote vehicle start
• Seat release, second row, power release only
• Steering wheel controls, mounted audio and Driver Information Center controls
• Steering wheel, heated

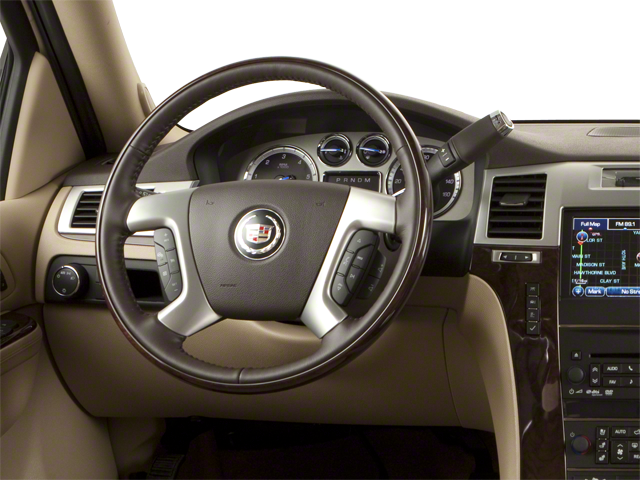

• Steering wheel, power-tilt, color-keyed with wood and leather-wrapped rim, locking
• Theft-deterrent system, vehicle, PASS-Key III+
• Tow/haul mode selector, button located at end of shift lever
• Universal Home Remote includes garage door opener, 3-channel programmable
• Visors, driver and front passenger illuminated vanity mirrors with extenders

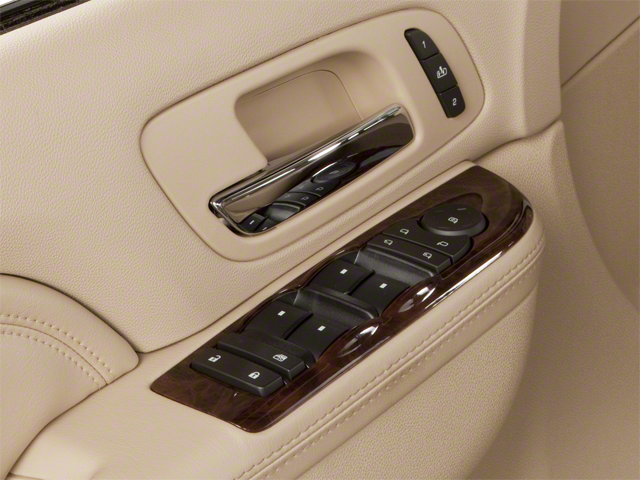

• Windows, power with driver and front passenger Express-Up/Down and lockout features

• All wheel drive
• Alternator, 160 amps
• Automatic level control, heavy-duty, air
• Battery, heavy-duty with rundown protection and retained accessory power
• Differential, heavy-duty locking rear
• Rear axle, 3.42 ratio
• Steering, power, rack-and-pinion
• Suspension, front independent, SLA, coil over shock and stabilizer bar
• Suspension, rear 5-link coil springs
• Throttle control, electronic
• Trailering equipment, heavy-duty includes trailering hitch platform, 7-wire harness with independent fused trailering circuits and 7-way sealed connector
• Transfer case, AWD, electronic automatic system, full-time, "always-on" all-wheel drive (AWD Model only.)

• Brakes, 4-wheel antilock, 4-wheel disc, VAC power
• Daytime Running Lamps with automatic exterior lamp control
• Door locks, child rear security
• OnStar Equipped (subscription required)
• Rearview camera system
• Safety belts, first and second row belts to body, third row belts to seat, lap and shoulder all seating positions
• Side Blind Zone Alert
• Traction control, all-speed, electronic

LUXURY PREFERRED EQUIPMENT GROUP

• Includes Standard Equipment

ENTERTAINMENT SYSTEM, REAR SEAT, IN-DASH DVD PLAYER

• with remote control
• second row pull-down overhead display screen
• 2 wireless infrared headphones
• auxiliary audio/video jacks on rear of center console
• sound compression
• CD-R and CD-R/W capability
• LED backlighting display
• MP3 capable

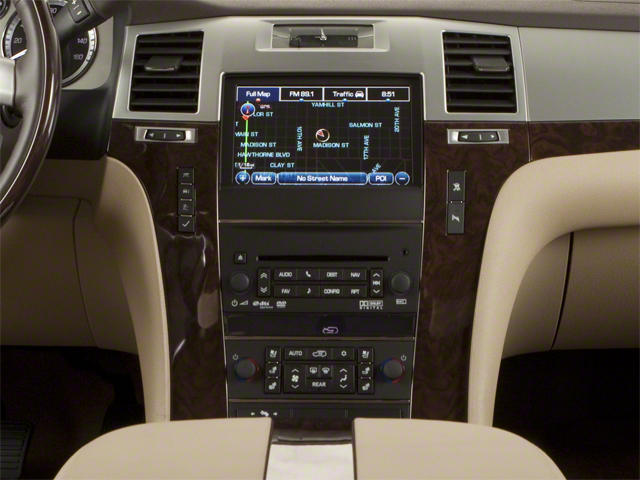

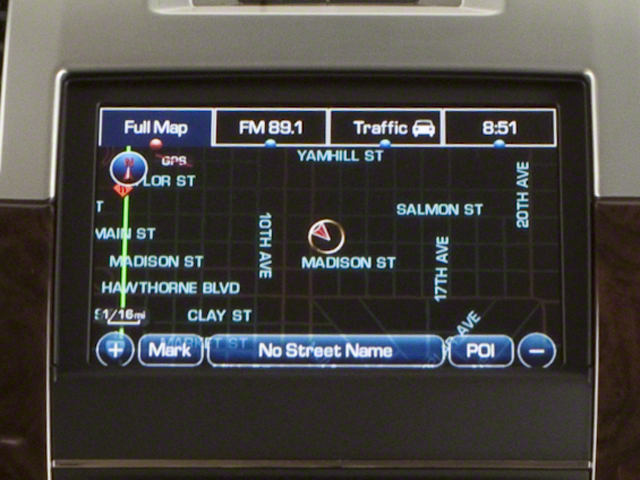

• Navigation System
• HID Headlamps
• Running Boards
• Towing Pkg

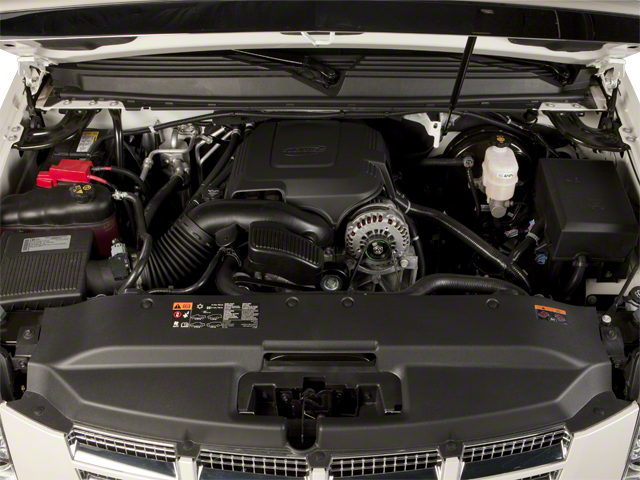

• V8; Flex Fuel; 6.2 Liter
• Automatic; 6-Spd HD w/Overdrive
• AWD
• Luxury Pkg
• Blind-Spot Alert
• StabiliTrak
• Anti-Theft System
• Keyless Start
• Air Conditioning; Rear
• Power Liftgate Release
• AM/FM Stereo
• CD/MP3 (Multi Disc)
• Premium Sound
• Bluetooth® Wireless
• Parking Sensors
• Backup Camera
• Dual Air Bags
• F&R Head Curtain Air Bags

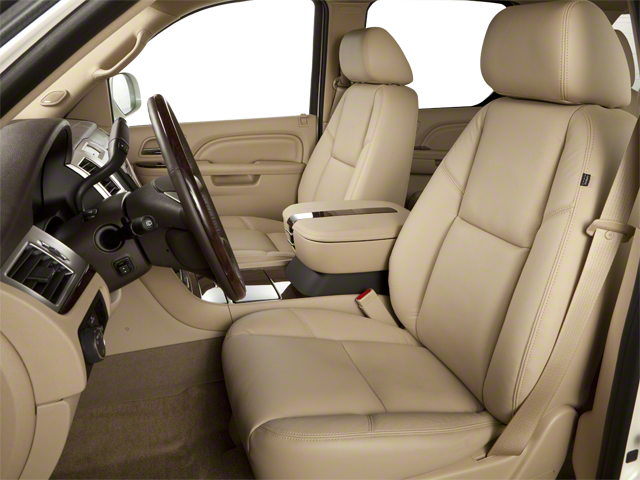

• Heated Seats
• Cooled Seats
• Leather

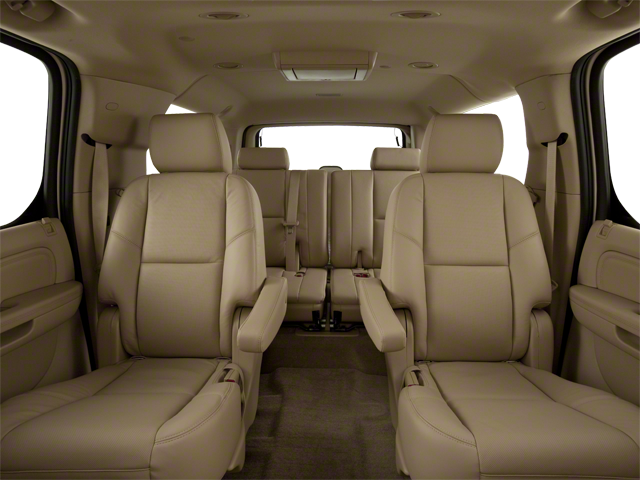

• Quad Seating (4 Buckets)
• Daytime Running Lights
• Air Conditioning
• Cruise Control
• Dual Power Seats
• Power Door Locks
• Power Windows
• Tilt Wheel
• ABS (4-Wheel)
• Alloy Wheels
• Fog Lights
• Keyless Entry
• Moon Roof
• Power Steering
• Traction Control

• Vehicle
• Rear Door Type: Liftgate
• Mileage
• Fuel Economy Est-Combined (MPG): 15
• EPA Fuel Economy Est - City (MPG): 13
• EPA Fuel Economy Est - Hwy (MPG): 20
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 160
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 16.6
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3600
• Gross Axle Wt Rating - Rear (lbs): 4200
• Curb Weight - Front (lbs): 3031
• Curb Weight - Rear (lbs): 2954
• Gross Vehicle Weight Rating Cap (lbs): 7400
• Gross Combined Wt Rating (lbs): 14000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 7700
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1155
• Suspension
• Suspension Type - Front: Coil springs
• Suspension Type - Rear: Multi-link
• Spring Capacity - Front (lbs): 3600
• Spring Capacity - Rear (lbs): 4200
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 3925
• Axle Capacity - Rear (lbs): 4200
• Axle Ratio (:1) - Front: 3.42
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): 46
• Shock Absorber Diameter - Rear (mm): 46
• Stabilizer Bar Diameter - Front (in): 1.41
• Stabilizer Bar Diameter - Rear (in): 1.10
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.0 x 1.2
• Rear Brake Rotor Diam x Thickness (in): 13.6 x 0.8
• Tires
• Front Tire Order Code: QST
• Rear Tire Order Code: QST
• Spare Tire Order Code: ZRS
• Front Tire Size: P285/45R22
• Rear Tire Size: P285/45R22
• Spare Tire Size: P265/70R17
• Wheels
• Front Wheel Size (in): 22 x 9
• Rear Wheel Size (in): 22 x 9
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Aluminum
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.75
• Steering Ratio (:1), At Lock: 3.0
• Turning Diameter - Curb to Curb (ft): 39.0
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 31
• Fuel Tank Location: - TBD -
• Doors
• Side Door Type: Swing-out
• Exterior Dimensions
• Wheelbase (in): 130.0
• Length, Overall w/rear bumper (in): 222.9
• Width, Max w/o mirrors (in): 79.1
• Height, Overall (in): 75.5
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): - TBD -
• Step Up Height - Side (in): 21.5
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): - TBD -
• Cargo Area Length @ Floor to Seat 1 (in): - TBD -
• Cargo Area Length @ Floor to Seat 2 (in): - TBD -
• Cargo Area Length @ Floor to Seat 3 (in): - TBD -
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): - TBD -
• Cargo Box (Area) Height (in): - TBD -
• Cargo Volume to Seat 1 (ft³): 137.4
• Cargo Volume to Seat 2 (ft³): 90.0
• Cargo Volume to Seat 3 (ft³): 45.8
• Interior Dimensions
• Passenger Capacity: 7
• Front Head Room (in): 41.1
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.3
• Front Hip Room (in): 64.4
• Second Head Room (in): 38.5
• Second Leg Room (in): 39.5
• Second Shoulder Room (in): 65.2
• Second Hip Room (in): 61.8
• Third Head Room (in): 38.1
• Third Leg Room (in): 34.9
• Third Shoulder Room (in): 64.7
• Third Hip Room (in): 49.4
• Summary
• Vehicle Name: Cadillac Escalade ESV
• Body Style: 4 Door
• Body Code: 130" WB
• Emissions
• EPA Greenhouse Gas Score: 1
• Tons/yr of CO2 Emissions @ 15K mi/year: 12.4
