• (6) speakers
• 12V auxiliary pwr outlet
• Air conditioning
• Carpeted floor covering
• Chrome accent shift knob
• Cloth 40/20/40 bench seat w/manual adjusters
• Color-keyed instrument panel bezel
• Column-mounted shifter
• Cruise control
• Day/night rearview mirror
• Dome lamp
• Fixed long mast antenna
• Floor tunnel insulation
• Folding rear bench seat
• Luxury front/rear floor mats
• Passenger side visor vanity mirror
• Premium vinyl door trim w/map pocket
• Pwr accessory delay
• Pwr door locks
• Pwr front windows w/1-touch up/down
• Rear under seat storage compartment
• Remote keyless entry
• Sentry Key theft deterrent system
• Sirius satellite radio (subscription required)
• Temp & compass gauge
• Tilt steering column
• Trip Computer
• Vehicle information center

• 160-amp alternator
• 625-amp maintenance-free battery
• Anti-lock 4-wheel disc brakes
• Electronic shift-on-the-fly part-time transfer case
• Four wheel drive
• Front stabilizer bar
• HD front shock absorbers
• HD rear shock absorbers
• Pwr rack & pinion steering
• Rear stabilizer bar
• Tip start electronic starting feature
• Trailer tow w/4-pin connector wiring

• Brake assist
• Child safety door locks
• Driver/front passenger multistage airbags
• Electronic stability program
• Front seat belt height adjusters
• Front seat side-impact airbags
• Front/rear side curtain airbags
• Tire pressure monitor

25G SLT CUSTOMER PREFERRED ORDER SELECTION PKG

• 5.7L V8 engine
• 5-speed auto trans

• Quick Order Package 25G SLT
• Class IV Receiver Hitch
• Cloth front seat upholstery
• Driver seat with 4-way directional controls
• Front passenger seat with 4-way directional controls
• Brake assist system
• Cruise control with steering wheel mounted controls
• Part-time 4WD
• HEMI 5.7L V-8 variable valve control
• regular unleaded
• engine with cylinder deactivation and 390HP
• HEMI 5.7L V-8
• Mechanical
• Sentry Key immobilizer
• Trailer sway control
• Electronic stability control system
• Hill start assist
• Manual rear child safety door locks
• Heated driver and passenger side door mirrors
• Manual tilting steering wheel
• Metallic paint
• 17 x 7-inch front and rear silver aluminum wheels
• P265/70SR17 AS BSW 656 RPM front and rear tires
• 4 airbags
• Driver front impact airbag
• Curtain first and second-row overhead airbags
• Passenger front impact airbag
• Auto-locking doors
• Valet key
• Power rear windshield
• 5-speed multi-speed automatic
• Tow/Haul Mode selectable mode transmission
• Cloth rear seat upholstery
• Manual climate control
• Rear under seat climate control ducts
• Rear console climate control ducts
• Exterior temperature display
• Transmission electronic control
• Sequential shift control
• Automatic
• Reflector headlights
• Halogen headlights
• Auto on/off headlight control
• Delay-off headlights
• 40-20-40 split-bench front seat
• Split-bench front seat
• Front seat center armrest
• 4-wheel disc brakes
• 4-wheel antilock (ABS) brakes
• Rear bench seat
• Fold-up rear seat cushion
• Full folding rear seats
• Rear seat center armrest
• Four-wheel drive

• Mileage
• EPA Fuel Economy Est - City (MPG): 13
• EPA Fuel Economy Est - Hwy (MPG): 18
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 625
• Maximum Alternator Capacity (amps): 160
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 16.2
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3900
• Gross Axle Wt Rating - Rear (lbs): 3900
• Curb Weight - Front (lbs): - TBD -
• Curb Weight - Rear (lbs): - TBD -
• Gross Vehicle Weight Rating Cap (lbs): 6800
• Gross Combined Wt Rating (lbs): - TBD -
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): - TBD -
• Wt Distributing Hitch - Max Tongue Wt. (lbs): - TBD -
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-link coil
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Front: Hypoid
• Axle Type - Rear: Semi-floating
• Axle Capacity - Front (lbs): 3900
• Axle Capacity - Rear (lbs): 3900
• Axle Ratio (:1) - Front: 3.55
• Axle Ratio (:1) - Rear: 3.55
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.2 x 1.10
• Rear Brake Rotor Diam x Thickness (in): 13.9 x 0.86
• Tires
• Front Tire Order Code: TSB
• Rear Tire Order Code: TSB
• Spare Tire Order Code: TBB
• Front Tire Size: P245/70R17
• Rear Tire Size: P245/70R17
• Spare Tire Size: Full-Size
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 7.0
• Rear Wheel Size (in): 17 x 7.0
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr rack & pinion
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): - TBD -
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Location: Inboard Frame Rails
• Exterior Dimensions
• Wheelbase (in): 140.5
• Length, Overall w/o rear bumper (in): 229.0
• Width, Max w/o mirrors (in): 79.4
• Height, Overall (in): 74.8
• Overhang, Front (in): 40.0
• Overhang, Rear w/o bumper (in): 48.4
• Front Bumper to Back of Cab (in): 152.6
• Cab to Axle (in): 28.0
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): 41.8
• Ground Clearance, Front (in): 9.0
• Ground Clearance, Rear (in): 8.6
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 67.4
• Cargo Box Width @ Top, Rear (in): 66.4
• Cargo Box Width @ Floor (in): 66.4
• Cargo Box Width @ Wheelhousings (in): 51.0
• Cargo Box (Area) Height (in): 20.0
• Tailgate Width (in): 60.4
• Cargo Volume (ft³): 50.3
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.0
• Front Leg Room (in): 41.0
• Front Shoulder Room (in): 66.0
• Front Hip Room (in): 63.6
• Second Head Room (in): 39.9
• Second Leg Room (in): 39.4
• Second Shoulder Room (in): 65.7
• Second Hip Room (in): 63.2
• Summary

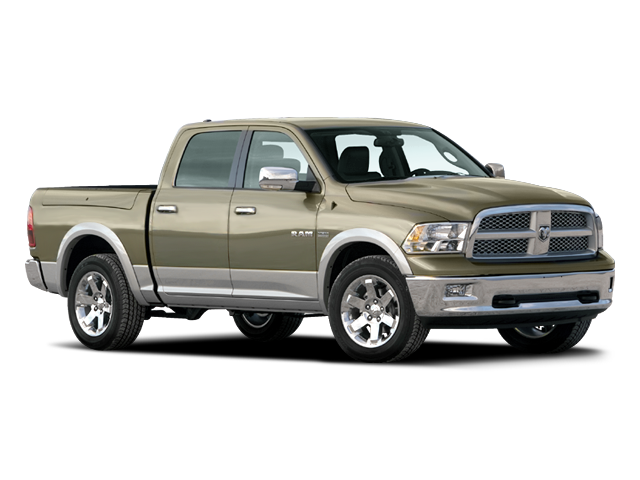

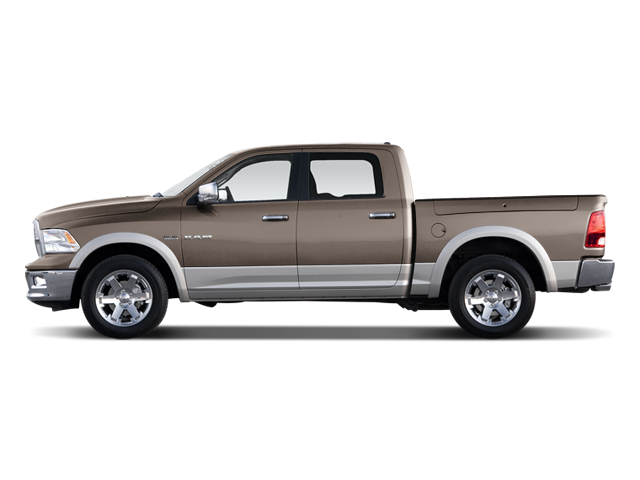

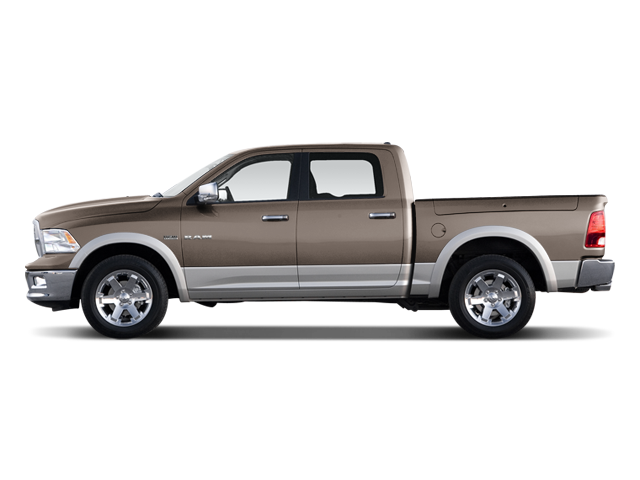

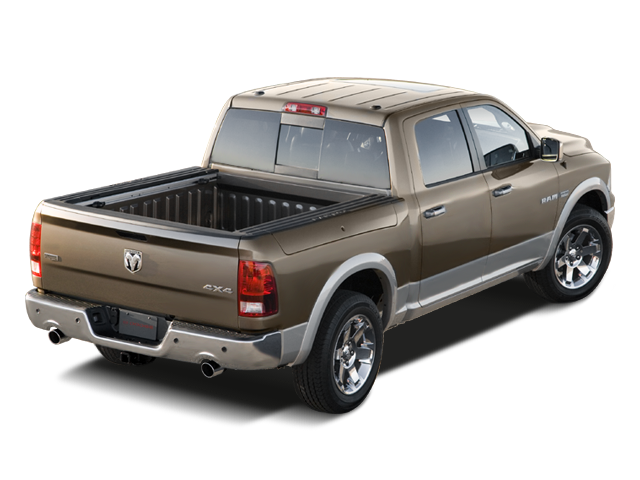

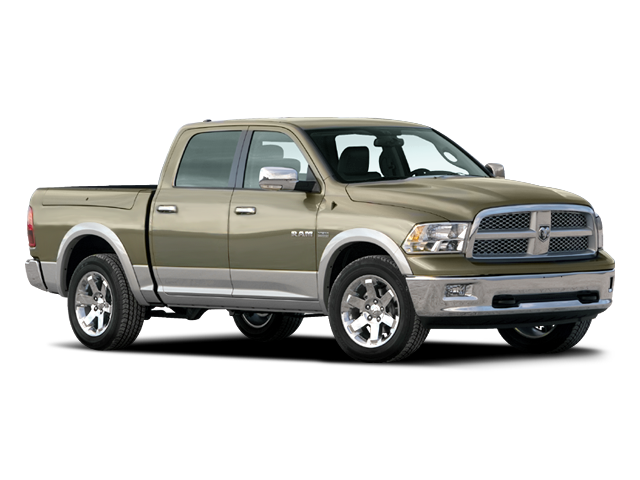

• Vehicle Name: Dodge Ram 1500
• Body Style: Crew Cab 5.7' Bed
• Body Code: 140.5" WB
