• (2) instrument panel cupholders
• (2) rear cupholders
• 2nd row grab handles
• AM/FM stereo w/CD & MP3 player, clock
• Auxiliary audio input jack
• Color-coordinated carpet
• Cruise control
• Delayed accessory pwr
• Display center-inc: warning messages & text functions
• Driver & passenger side A-pillar grab handles
• Fade-To-Off Interior Lighting
• Front map lights (functions as dome lamp)
• Front pwr point
• Glove Box
• Outside temp gauge & compass
• Pwr 1st row windows w/driver side 1-touch down
• Pwr 2nd row windows w/privacy tint glass
• Pwr door locks w/autolock feature
• Rear dome lamp
• Rear pwr point
• Remote keyless entry w/(2) fobs, illuminated entry & panic button
• SecuriLock anti-theft ignition (PATS)
• Tachometer
• Tilt steering column
• Tire pressure monitoring system

• (2) front tow hooks
• 110-amp alternator
• 2-ton jack
• 4-wheel drive
• 58-amp/hr (540 CCA) maintenance-free battery
• Electronic shift-on-the-fly (ESOF) transfer case
• Leaf spring rear suspension w/2-stage variable rear springs
• Long-spindle double wishbone front suspension w/coil-over-shock IFS
• Pwr front & rear anti-lock disc brakes (ABS)
• Pwr rack & pinion steering

• 3-point safety belts at all rear seat positions
• Auto lock safety belt feature for child seats
• Center front 2-point safety belt
• Dual note horn
• Dual stage driver & front passenger front airbags w/passenger off switch
• Dual stage driver & front passenger seat-mounted side airbags
• Outside front lap & shoulder safety belts-inc: height adjusters, pretensioners, energy management retractors
• Pwr front & rear anti-lock disc brakes (ABS)
• Rear door child safety locks
• Seat Belt Minder system

TRAILER TOW PKG

• class IV trailer hitch receiver
• 7-pin wiring harness
• upgraded radiator & auxiliary transmission oil cooler

MANUAL HEATED TELESCOPING TRAILER TOW EXTERIOR MIRRORS W/PWR GLASS

• integrated turn signals
• puddle lamps

• Order Code 507A: Electronic 4-Speed Automatic Transmission with Overdrive; P255/70Rx17 OWL A/T (5) General Tires; AM/FM Stereo/clock/single CD Radio; 17" Chrome Clad Steel Wheels; Premium Cloth 40/20/40 Front Seat
• Trailer Tow Package
• Limited Slip with 3.55 Axle Ratio
• Power Driver Seat
• Power Sliding Rear Window with Privacy Tint
• Manual Telescoping Trailer Tow Mirrors
• Driver's Keyless Entry Keypad
• Cruise control with steering wheel mounted controls
• Driver seat power cushion tilt
• fore/aft control and height adjustable control
• Part-time 4WD
• Triton 5.4L V-8 variable valve control
• engine with 300HP
• Triton 5.4L V-8
• External keypad door lock control
• Mechanical
• SecuriLock(R) immobilizer
• 3 12V power outlets
• Manual rear child safety door locks
• Heated driver and passenger side door mirrors
• Manual tilting steering wheel
• Chrome hub wheel covers
• Manual extendable trailer mirrors
• 17 x 7.5-inch front and rear chrome steel wheels
• P255/70SR17 AT OWL front and rear tires
• Premium cloth front seat upholstery
• 2 airbags
• Driver front impact airbag
• Passenger front impact airbag
• Airbag occupancy sensor
• Auto-locking doors
• Power rear windshield
• 4-speed automatic
• Premium cloth rear seat upholstery
• Manual climate control
• Rear under seat climate control ducts
• Exterior temperature display
• Transmission electronic control
• Automatic
• Reflector headlights
• Halogen headlights
• Auto on/off headlight control
• Delay-off headlights
• Remote activated perimeter approach lighting
• 40-20-40 split-bench front seat
• Driver seat with 8-way directional controls
• Manual driver seat lumbar
• Split-bench front seat
• Front seat center armrest
• Front passenger seat with 4-way directional controls
• 4-wheel disc brakes
• 4-wheel antilock (ABS) brakes
• Split-bench rear seat
• Fold-up rear seat cushion
• 60-40 folding rear seats
• Four-wheel drive
• Seating capacity: 6
• Trailer wiring harness
• Class IV tow rating

• Mileage
• EPA Fuel Economy Est - City (MPG): 13
• EPA Fuel Economy Est - Hwy (MPG): 17
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 540
• Maximum Alternator Capacity (amps): 110
• Maximum Alternator Watts: 1650
• Cooling System
• Total Cooling System Capacity (qts): 19.7
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3600
• Gross Axle Wt Rating - Rear (lbs): 3800
• Curb Weight - Front (lbs): 3082
• Curb Weight - Rear (lbs): 2279
• Gross Vehicle Weight Rating Cap (lbs): 6900
• Gross Combined Wt Rating (lbs): 12200
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 750
• Suspension
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: Leaf Spring
• Spring Capacity - Front (lbs): 3150
• Spring Capacity - Rear (lbs): 3850
• Axle Type - Front: Double Wishbone
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 4400
• Axle Capacity - Rear (lbs): 3800
• Axle Ratio (:1) - Front: 3.55
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.55
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 36
• Shock Absorber Diameter - Rear (mm): 32
• Stabilizer Bar Diameter - Front (in): 1.34
• Brakes
• Brake Type: Power
• Brake ABS System: 4-wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.0 x 0.55
• Rear Brake Rotor Diam x Thickness (in): 13.7 x 0.47
• Tires
• Front Tire Order Code: T7C
• Rear Tire Order Code: T7C
• Spare Tire Order Code: T7C
• Front Tire Size: P255/70R17
• Rear Tire Size: P255/70R17
• Spare Tire Size: P255/70R17
• Front Tire Capacity (lbs): 2105
• Rear Tire Capacity (lbs): 2105
• Spare Tire Capacity (lbs): 2105
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x 7.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), On Center: 17.2
• Turning Diameter - Curb to Curb (ft): 45.1
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 30
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 138.5
• Length, Overall w/o rear bumper (in): 223.8
• Width, Max w/o mirrors (in): 78.9
• Height, Overall (in): 76.0
• Overhang, Front (in): 36.9
• Overhang, Rear w/o bumper (in): 48.4
• Front Bumper to Back of Cab (in): - TBD -
• Cab to Axle (in): - TBD -
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 34.7
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): - TBD -
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 67.0
• Cargo Box Width @ Top, Rear (in): 62.4
• Cargo Box Width @ Floor (in): 60.3
• Cargo Box Width @ Wheelhousings (in): 50.0
• Cargo Box (Area) Height (in): 22.3
• Tailgate Width (in): 65.2
• Cargo Volume (ft³): 55.5
• Ext'd Cab Cargo Volume (ft³): 49.5
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 40.1
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.8
• Front Hip Room (in): 63.8
• Second Head Room (in): 39.6
• Second Leg Room (in): 39.0
• Second Shoulder Room (in): 65.8
• Second Hip Room (in): 63.1
• Summary

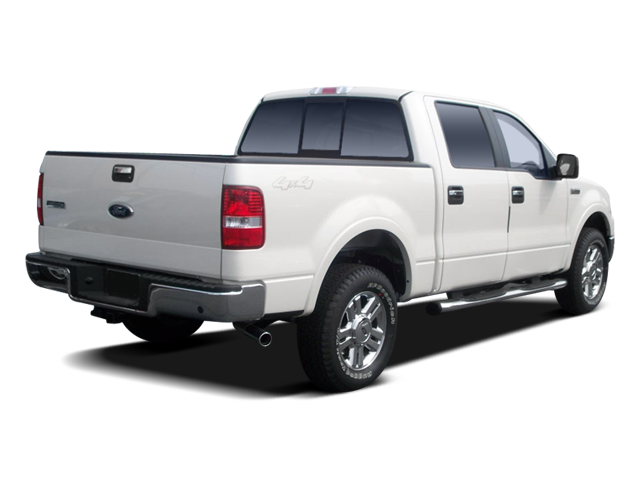

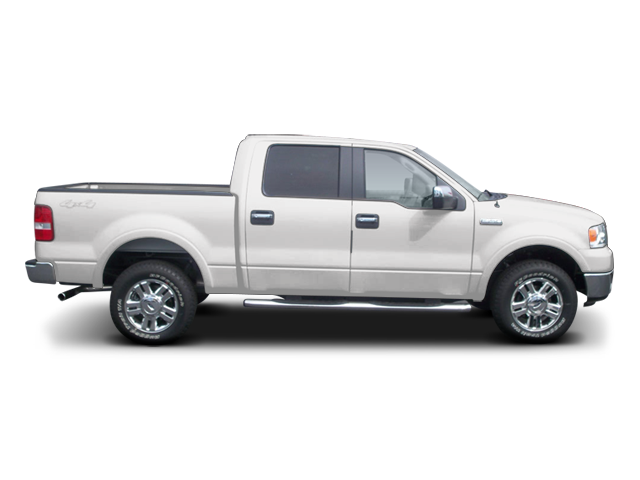

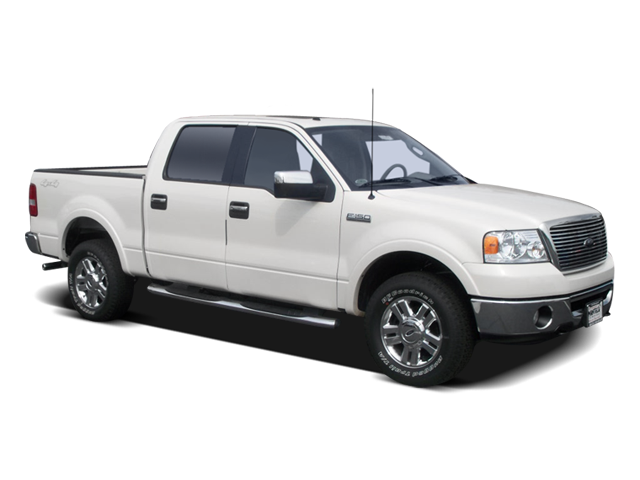

• Vehicle Name: Ford F-150
• Body Style: Crew Cab 5.5' Styleside
• Body Code: 139" WB
